IS200SCLTH1A Core Analog Terminal Board

New Surplus Factory Package
$6675
SKU: 12MVMVCS1
3 Year Warranty:
Order Before 3PM EST
Rush Available
1 in Stock
New Surplus AX Control Package
SKU: 12MVMVCS2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
SKU: 12MVMVCS3
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Repair
$1780
SKU: 12MVMVCS4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the IS200SCLTH1A

  • The IS200SCLTH1A is a printed circuit board (PCB) manufactured by GE Energy (a General Electric subsidiary).
  • It is part of their Mark VIe Series of turbine control systems and component products.
  • Specifically, it functions as a Core Analog Terminal Board.
  • It is a modified version of the pre-existing IS200SCLTH1 parent PCB, incorporating a singular, A-rated functional product revision.
  • Often abbreviated as SCLT.
Intended Function and I/O Options
  • When combined with its associated SCLS terminal board, the IS200SCLTH1A plays a crucial role in the Mark VIe Series assembly.
  • It provides a large selection of analog I/O options to the assembly's engine operation.
  • Supported Inputs and Outputs include:
    • Thermocouple Inputs
    • RTD Inputs
    • Voltage Inputs
    • 4-20 mA current loop inputs
    • 4-20 mA current loop outputs
Hardware Features and Design
  • Features three noticeable connector ports (JT, JS, and JR).
  • Each jumper port corresponds to its own respective Mark VIe Series option boards, providing interfacing for three possible total BCLA processing boards.
  • A series of terminals exists along the top for possible field connector interfacing.
  • All hardware components are well-secured underneath a chemically-applied layer of conformal PCB protection.
  • The "IS200" series tag identifies it as a normal-assembly PCB manufactured in GE Energy's Salem, Virginia factory location.
  • The "H1" series grouping tag details its conformal coating style and group one Mark VIe Series grouping.
  • The final "A" digit signifies its singular, A-rated functional product revision.

IS200SCLTH1A Technical Specifications

Manufacturer General Electric
Series Mark VIe & Mark VIeS Control System
Part Number IS200SCLTH1A
Functional Acronym SCLT
Functional Description Core Analog Terminal Board
PCB Coating Conformal Coating
Functional Revision 1 A
Shipping Weight 1.05 lb

Frequently Asked Questions about IS200SCLTH1A

What is the other half of the PCLA Core Analog Module Assembly?

While the IS200SCLTH1A PCB essentially makes up half of the PCLA assembly, the other core component exists in the Mark VIe SCLS related terminal board.

What does RTD stand for?

This IS200SCLTH1A Core Analog Terminal Board has inputs for several RTDs, which stands for Resistor Temperature Detectors.

Is the IS200SCLTH1A Terminal Board available for repairs at AX Control?

Yes. As with the majority of our stock of new or refurbished General Electric printed circuit boards, this IS200SCLTH1A Core Analog Terminal Board is available for both repair and replacement right here at AX Control, with a standard lead time of one to two weeks on most repairs, dependent on market availability.

Reviews For IS200SCLTH1A

Internal Review
(5.0)

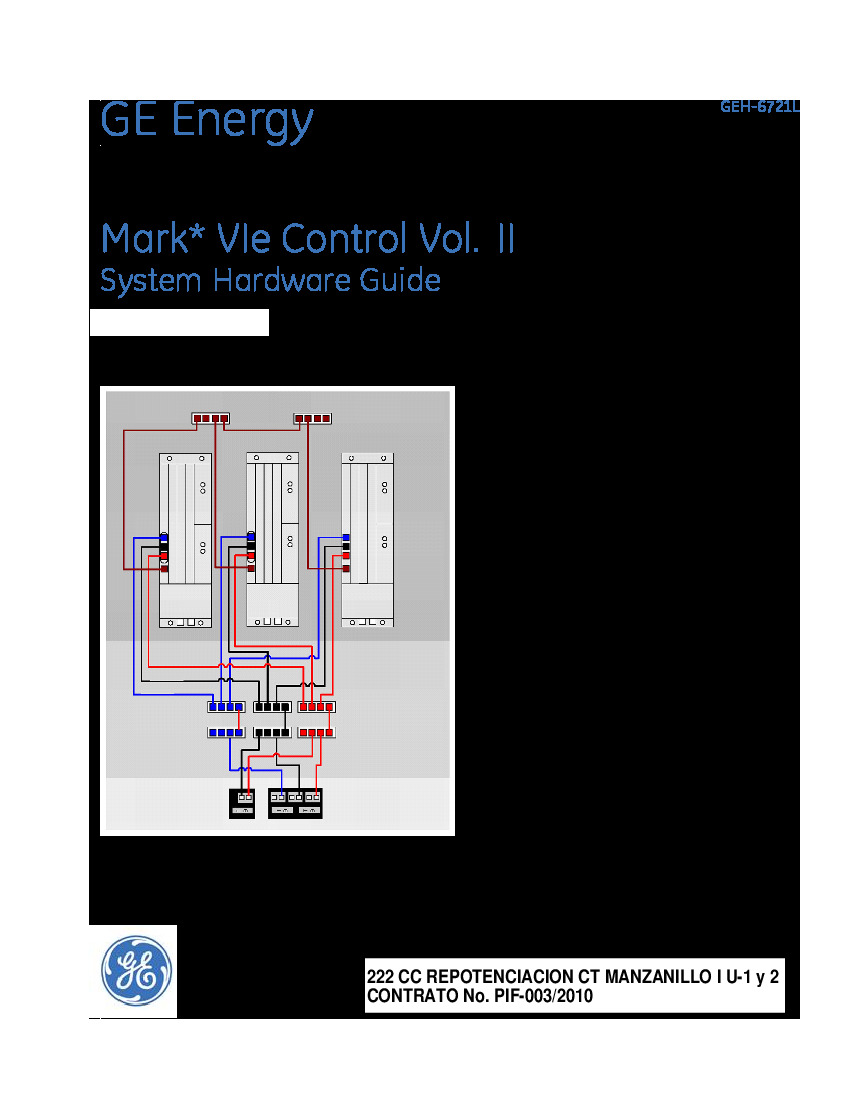

As indicated by this IS200SCLTH1A product's original, product-specific instructional manuals, this Mark VIe Control System Series offering makes up one half of a crucial modular assembly in this series; combining with the similarly-labeled SCLS terminal board to provide the Mark VIe Control System assembly with a wide array of input and output options. As alluded to before, this IS200SCLTH1A Terminal Board should be supremely-protected beneath a layer of conformal-style PCB coating, which has quickly become the industry standard for protection of Mark VIe inputs and outputs. This IS200SCLTH1A board and many others ship protected by AX Control's guaranteed three-year warranty upon purchase. - AX Control Lead Technician
