IS200JPDDG2A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures 5.00 (1) Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product

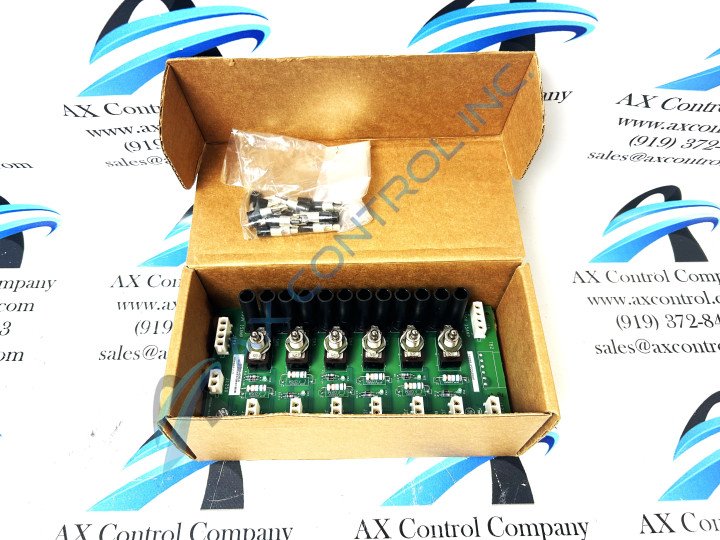

The IS200JPDDG2A is a Power Distribution boardfrom General Electric's Mark VIe Control Systems series

New Surplus Factory Package
$5465
SKU: 8MVMVCS1
3 Year Warranty:
Order Before 3PM EST
Rush Available
1 in Stock
New Surplus AX Control Package
SKU: 8MVMVCS2
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
SKU: 8MVMVCS3
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Repair
$1470
SKU: 8MVMVCS4
3 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the IS200JPDDG2A

The IS200JPDDG2A is a Power Distribution Terminal Board from the Mark VIe Control System series. This board was manufactured by GE Energy. The IS200JPDDG2A can work with the different control systems from the General Electric Mark VIe series. The IS200JPDDG2A is designed as a DC Power Distribution board and can be used to distribute a single DC power output into multiple loads. The board can also be used for power isolation.

The power distribution module can support several different power sources. These are:

  • 115/230 VAC
  • 24 VDC
  • 125 VDC

The IS200JPDDG2A is a Branch Circuit element, which is different from a Core Distribution System. The IS200JPDDG2A can take the core output and turn it into individual circuits for consumption in the cabinet with the control system or systems. The branch circuit elements, including the IS200JPDDG2A, also provide their own feedback.

IS200JPDDG2A Technical Specifications

Part Number IS200JPDDG2A
Manufacturer General Electric
Series Mark VIe & VleS
Board Type Power Distribution Module
Circuit Board Category Branch Circuit Board
Input Voltage 24 VDC, 48 VDC, 125 VDC
DC Outputs 6 outputs
Fuse Size 5mm X 20mm

Frequently Asked Questions about IS200JPDDG2A

How does the IS200JPDDG2A receive its power?

The IS200JPDDG2A can get its power from one of the main power distribution modules.

Are there other power distribution boards with different outputs?

Yes, there are a handful of power distribution boards, with some having different outputs that might better fit users systems than the IS200JPDDG2A.

Reviews For IS200JPDDG2A

Internal Review
(5.0)

The IS200JPDDG2A is a terminal board that can supply power to a individual components in a system cabinet. The IS200JPDDG2A is a flexible board, with the module accepting both VAC and VDC power. The IS200JPDDG2A has feedback that is not part of the PPDA I/O pack. This feedback for the module is provided by the module itself. - AX Control Lead Technician

IS200JPDDG2A Technical Specifications

Part Number IS200JPDDG2A
Manufacturer General Electric
Series Mark VIe & VleS
Board Type Power Distribution Module
Circuit Board Category Branch Circuit Board
Input Voltage 24 VDC, 48 VDC, 125 VDC
DC Outputs 6 outputs
Fuse Size 5mm X 20mm
