The 602775-103 is a Delta Tau PMAC2 Interface board

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 602775-103 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

602775-103

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (5)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (5)
  • Click a star to rate this product
The 602775-103 is a Delta Tau PMAC2 Interface board

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 602775-103 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

The 602775-103 is a Delta Tau Data Systems PMAC2 Full Digital PWM Interface board.  This family of controllers is designed to provide two-channel signals with digital-input amplifiers.  Connections can be made in various ways, including through the flat-cable connector to the PMAC2, through a separate mini-D connector, through IDC headers or through removable modular terminal blocks.

The 602775-103 is designed with a 36-pin mini-D connector to direct-PWM driver per axis.  It has four optically isolated sinking/sourcing 12-24V flag inputs per axis and has differential 3-channel encoder plus Hall-track input per axis.  It can be used to couple to direct PWM amplifiers with A/D converters.

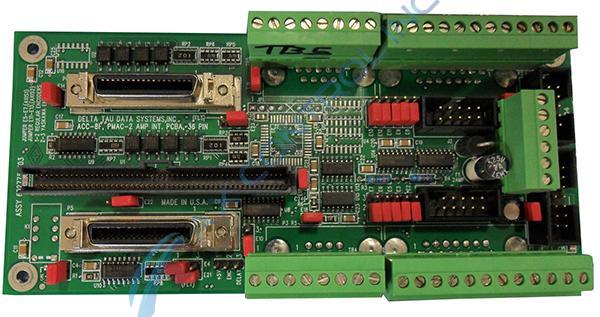

As noted above, the 602775-103 has multiple connectors.  This includes five terminal blocks that are located in a U-shape along the board edges.  The board also has five vertical pin connectors and two D-type vertical connectors. The board is populated by twenty-three jumper switches.  Some jumper settings are noted on the board surface. The board is fitted with a fuse component. It also has multiple integrated circuits, resistors, and capacitors.  Some components are screw mounted to the board surface.

More information about the board and its components can be accessed through manufacturer publications like the series manual or the device data sheet.   Only trained personnel should handle or install this component. The manufacturer of this device, Delta Tau, originally provided all technical support.

If you would like a current price list of our available parts or a repair price list, please contact our team today.  We will be happy to help you in any way we can.

Repair Services For 602775-103

Type Lead Time Price Action
Repair Service 1-2 weeks $915

Our highly skilled technicians can repair your 602775-103. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

602775-103 Manuals, White Papers, Data Sheets, and Troubleshooting
