The 34-0394001 is a Delta Tau PMAC 2 circuit board

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Warranty: Learn More
Sell Surplus: Have a 34-0394001 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 34-0394001
  • SKU: 340394001DT
  • Manufacturer: Delta Tau
  • Series: PMAC 2

34-0394001

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The 34-0394001 is a Delta Tau PMAC 2 circuit board

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Warranty: Learn More
Sell Surplus: Have a 34-0394001 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 34-0394001
  • SKU: 340394001DT
  • Manufacturer: Delta Tau
  • Series: PMAC 2

Product Description

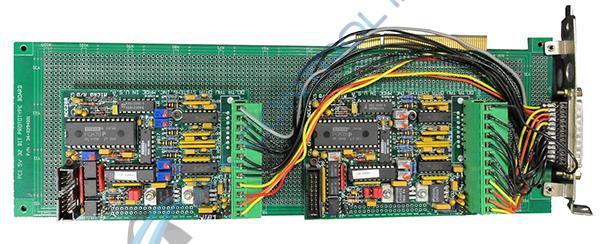

The 34-0394001 is a Delta Tau Data Systems (PMAC 2) ACC 28A Micro Analog to Digital Converter PCI (peripheral component interconnect.)  This is a complex board with two connected auxiliary boards and a significant amount of surface wiring.

The primary board of the 34-0394001  is marked on one end as “PCI 5V 32 Bit Prototype Board, P/N 34-0394001.”   The board is factory drilled in each corner for mounting options. The board surface is printed with lines of circles that are then broken up into an overlaid grid that is subtly marked across the surface of the board with its coordinates notes at the board edges (Y01/Y11/Y31, X51/x61/x71/x81/x91/x101.)   The board has a single connector attached to one short edge at a ninety-degree angle. This connector is attached to the board surface via two screw mounts. Dozens of red, orange, yellow, and black wires traverse from the connector to the terminal blocks on the two auxiliary boards. The motherboard has a line of conductive pins extending from one long edge that are each have four circular openings designated to each pin, and that are labeled (typically twice.)  Some of these labels are such things as +5V, Ground, Stop #, Trdy#, and TDI.

The two auxiliary boards attached to the board surface are essentially duplicates of each other.  A terminal strip is located at the front of each board. Both boards are populated with two voltage regulators and also have five potentiometers on their surface.   The boards make use of both carbon composite resistors and metal film resistors. Capacitors tend to be made of ceramic material. Each board has multiple resistor network arrays, several integrated circuits, and a single vertical pin connector for attaching a ribbon cable connector.   More information on the board and its components can be found through manufacturer user guides or manuals.

Repair Services For 34-0394001

Type Lead Time Price Action
Repair Service 1-2 weeks $1008

Our highly skilled technicians can repair your 34-0394001. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

34-0394001 Manuals, White Papers, Data Sheets, and Troubleshooting
